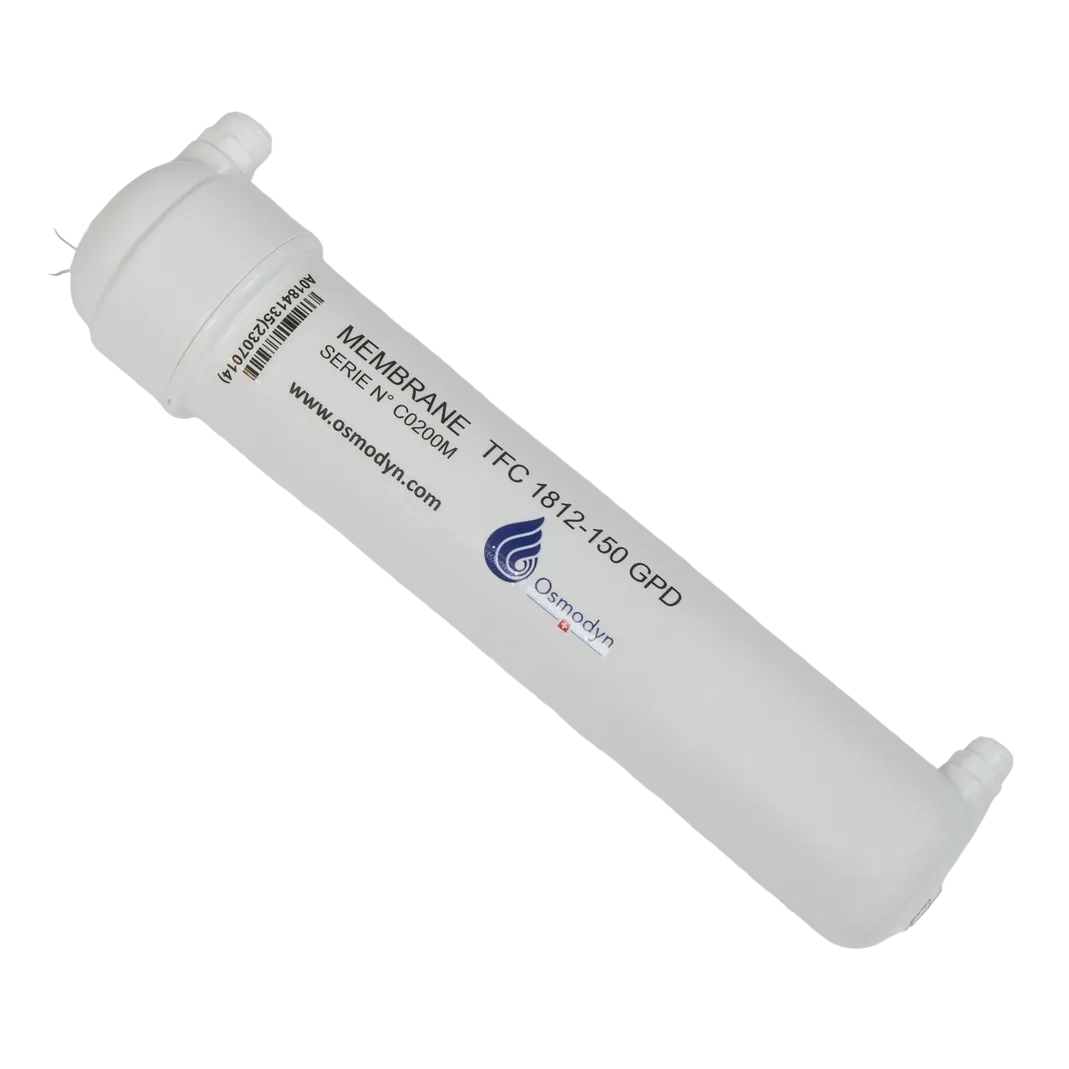

Compact encapsulated diaphragm 1812-150GPD

Product description:

The 1812-150GPD Osmodyn compact encapsulated membrane provides optimum reverse osmosis water filtration, eliminating 100% of viruses and over 99.99% of chemical and organic contaminants. Encapsulated in its own membrane holder, it is more hygienic and easier to install, with no risk of contamination during replacement. Adaptable to the entire Osmodyn range, it guarantees clean, safe water of consistent quality in the home.

Functionality :

• TFC (Thin Film Composite) membrane, more resistant than TAC type.

• Encapsulated, ready-to-use for quick, safe replacement

• Compatible with all Osmodyn osmosis and in-line filtration systems

• Traceability assured thanks to a unique barcode for each membrane

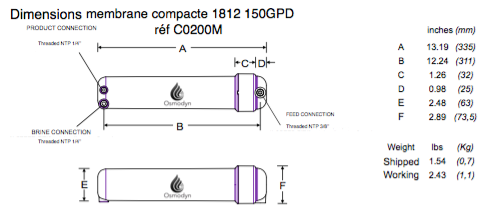

Technical specifications :

• Type: Spiral Wound, Composite Polyamide, Polypropylene

• Permeate flow rate: 150 GPD (~568 liters/day)

• Salt rejection: 97.5% nominal (96% minimum)

• Applied pressure: 3.5 bar (max 8.6 bar)

• Operating temperature: 25°C (limit 45°C)

• pH: 6.5 - 7.0

• Maximum chlorine: <0.1 ppm

• Maximum turbidity: 1 NTU

• Connections: 3/8" NTP input, 1/4" NTP outputs

Benefits:

• Effective filtration of chemical, medicinal and mineral contaminants

• Simple, safe installation thanks toencapsulation

• Long service life in excess of 3 years, depending on water quality and flow rate

• Compatible with standard 1/4" and 3/8" fittings

• NSF, ISO 901 and ISO 14001 compliant

Maintenance and replacement :

• Replacement recommended according to water quality and service indicator

• Instructions and assistance available for simple, safe replacement

• Check water inlet quick connector (1/4" or 3/8") before installation
