Osmosis evacuation fitting

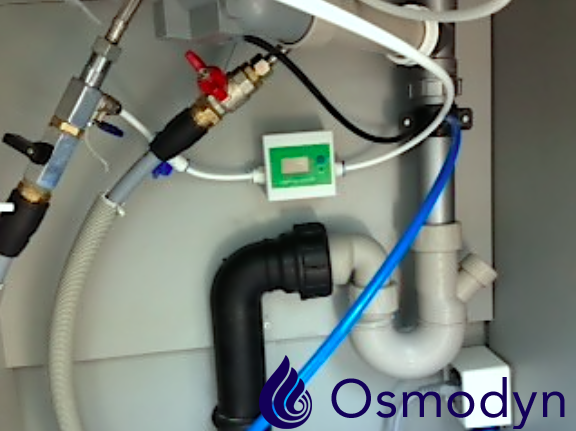

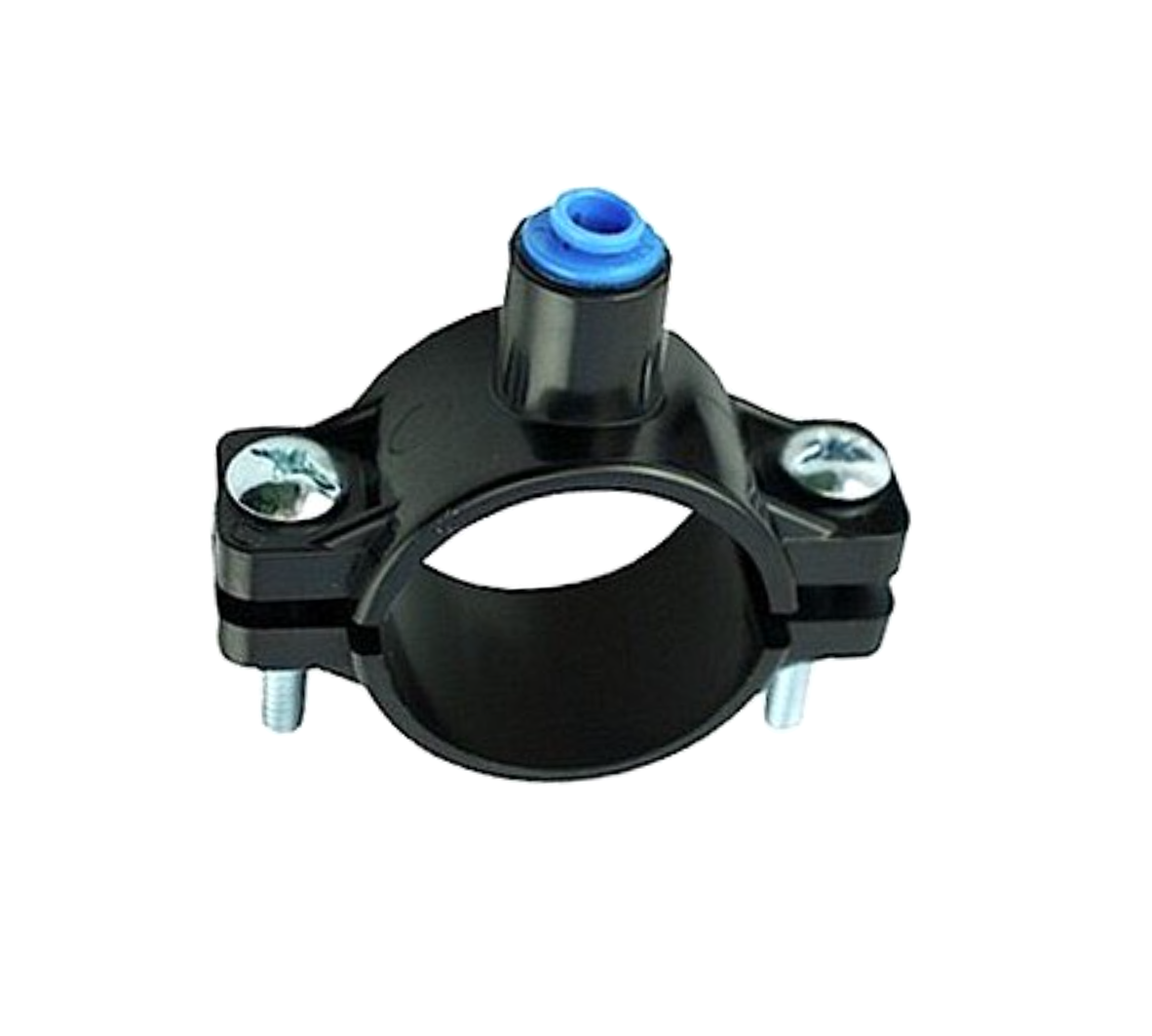

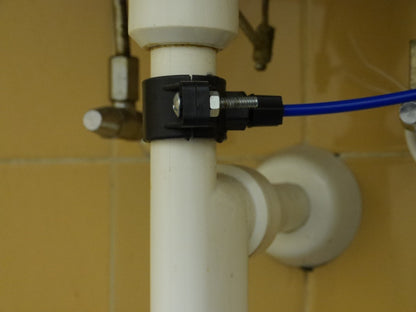

This clamp has been designed for a 40mm diameter pipe.

Installation technique:

Using a drill and a 6mm drill bit, drill a hole in your drainpipe between the sink and the siphon.

Leave enough space to assemble the connecting clamp.

• Be sure to drill horizontally at the top to prevent waste from obstructing the water flow. Hole diameter for 1/4" tube = 6.35 mm

• Position and glue the square foam gasket opposite the hole.

• Place the two clamps, then the nuts in the holes in the clamp, insert the screws and screw in progressively, alternating tightening without forcing on the components. (Never screw individually).

• Push your pipe through the 1/4" quick connector or through the clamping nut (depending on model) to the drain .
