AquaProtect-Duo High-Capacity System - 300 m³

Big Blue 20-inch dual-stage filter with anti-scale RING included

AquaProtect-Duo High Capacity (GC) is a comprehensive water treatment solution for municipal water systems installed at the point of entry to a residence or commercial facility, designed for a water consumption of 300 m³

Estimated capacity based on tap water; may vary depending on chlorine content, turbidity, hardness, flow rate, and volume consumed.

 Principle

High-capacity filtration and limescale protection for commercial systems and equipment.

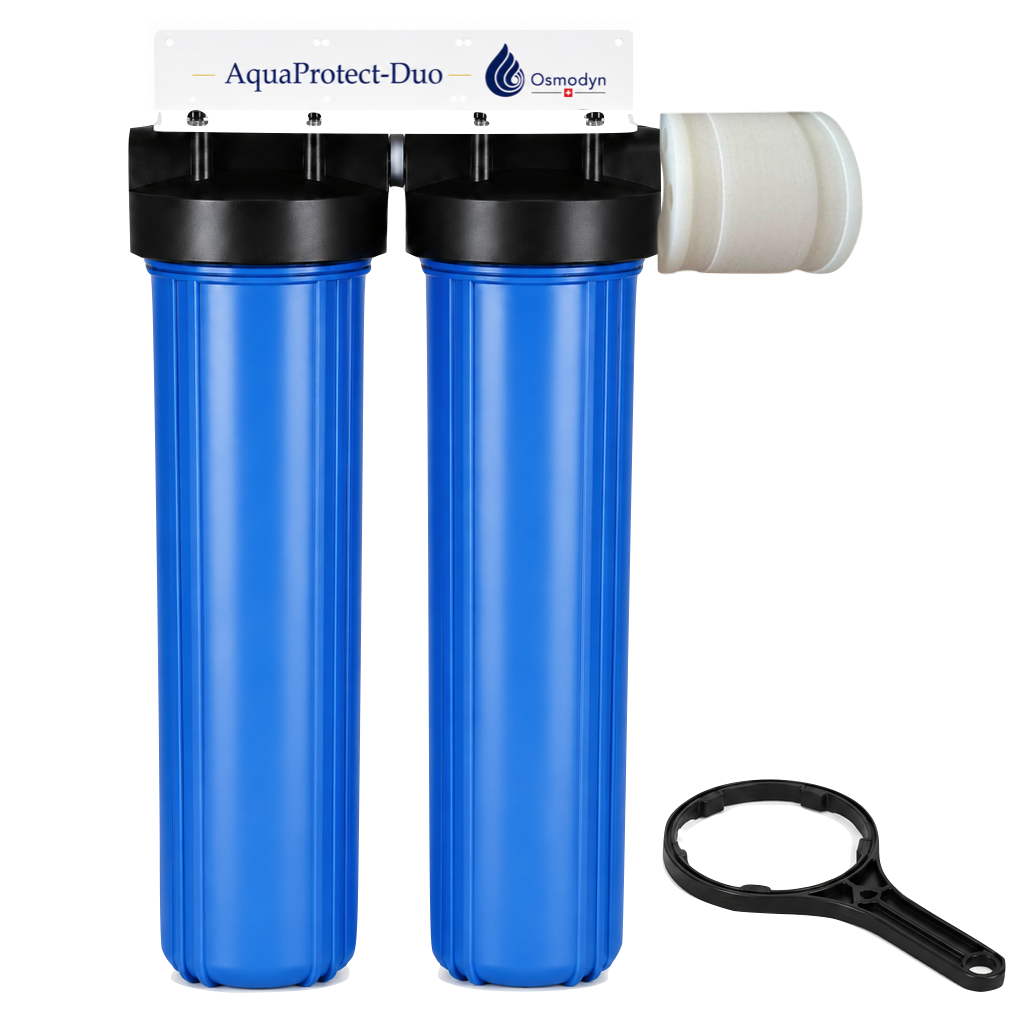

The AquaProtect-Duo High-Capacity system includes two 20-inch Big Blue filter housings and a passive anti-scale treatment ring.

The first stage is equipped with a 20" × 4.5" compact polypropylene sediment cartridge (5 µm), which removes silt, sand, iron oxides, suspended particles, and other solid impurities.

The second stage incorporates a high-capacity BLOCK activated carbon cartridge measuring 20" × 4.5", 10 µm. Thanks to its microporous structure, it works through deep filtration and molecular adsorption, effectively reducing chlorine, tastes, odors, numerous organic compounds (VOCs), and certain PFAS.

The RING is included with the kit and must be selected based on the actual outer diameter of the pipe on which it will be installed at the outlet of the AquaProtect-Duo GC.

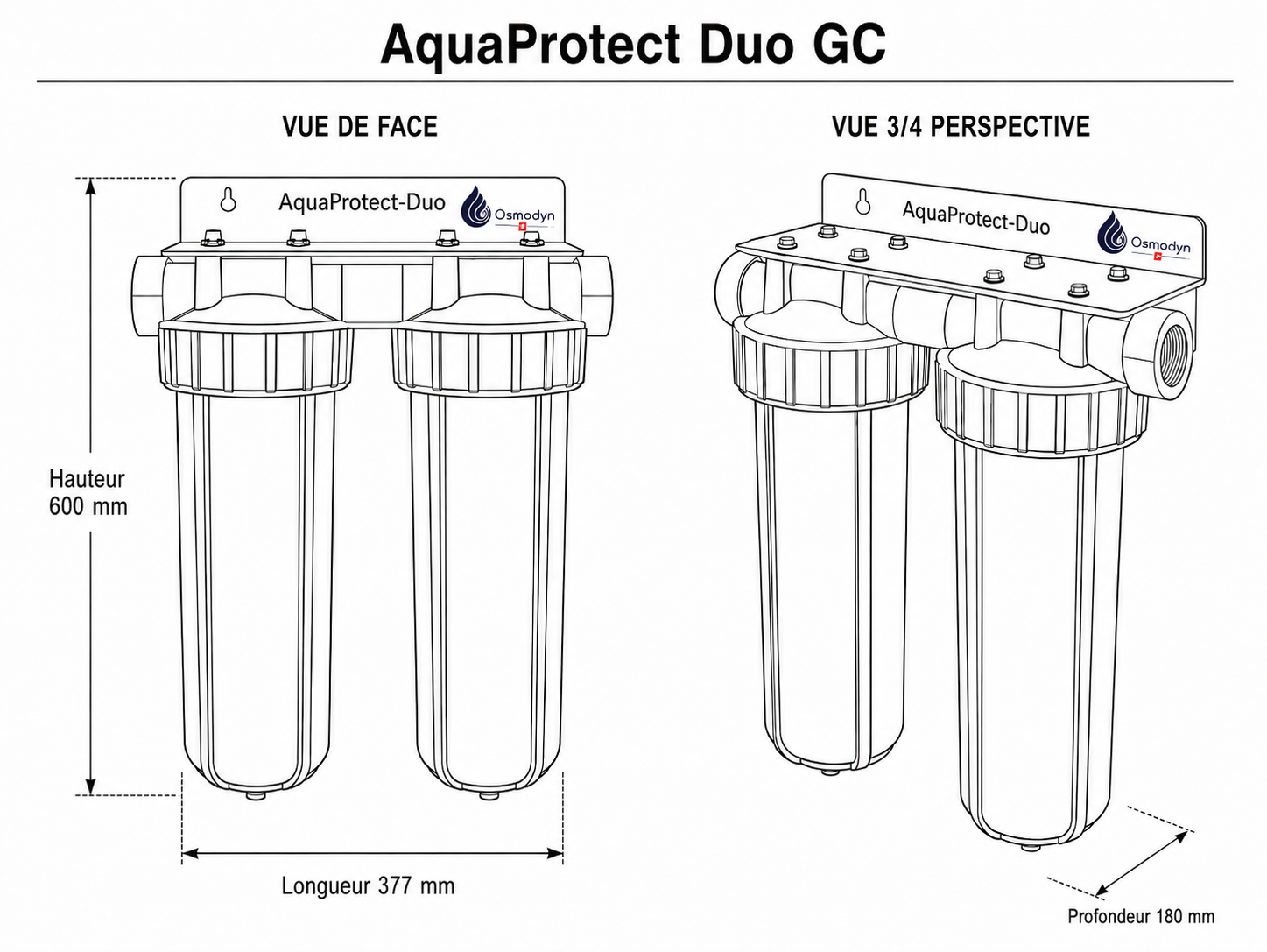

Dimensions: L 377 x W 180 x H 600 mm.

1-inch female inlet/outlet

Do not use tow to seal the connection; instead, use tape or sealant approved for drinking water.

Tangible Benefits in Everyday Life

• High-Capacity Filtration of Municipal Water
• Reduction of Suspended Particulate Matter
• Reduction of chlorine, tastes, odors, organic compounds, and certain PFAS
• Long battery life thanks to the 20" Big Blue cartridges
• Reducing Scale Buildup in Systems
• Protection of Pipes, Fittings, and Equipment
• Helps reduce maintenance and repair costs
• Easy installation at the point of entry to the home or business premises
• No chemicals are added to the water
• Configuration adapted to the pipe's outer diameter

Installation and Renewal

• Installation:  With Osmodyn®, you’re not just buying a filtration system—you’re choosing a solution that comes with support. Before you buy, we can review your setup together to let you know whether you can install it yourself or if it’s best to have a professional do it.
• However, for systems connected to the main water supply, commercial installations, or more technically complex equipment, we recommend hiring a qualified installer. Professional installation ensures that connections are secure, that the direction of water flow is correct, that access to consumables is provided, and that the system operates properly over the long term.
• Replacement:

  Osmodyn® filters are designed to be easily replaced when the system has been installed with sufficient access. In most cases, the user can replace the cartridges by following the provided instructions.

  If you have any questions, please send us a photo of your system: we’ll guide you toward the best solution.

In summary

AquaProtect-Duo High Capacity combines high-capacity general filtration with passive protection against limescale in a single system. Installed at the point of entry, it helps to sustainably preserve water quality, as well as the pipes and equipment supplied by the water system.
