By-pass connector Under-sink tee 3/8" F/M

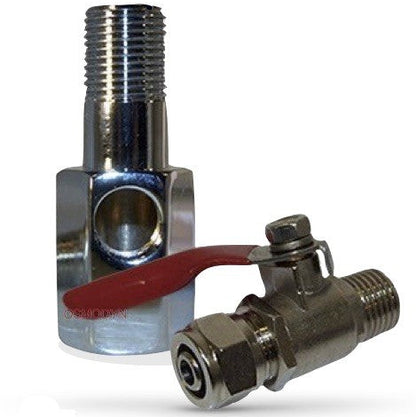

3/8" female-male water connector with ball valve

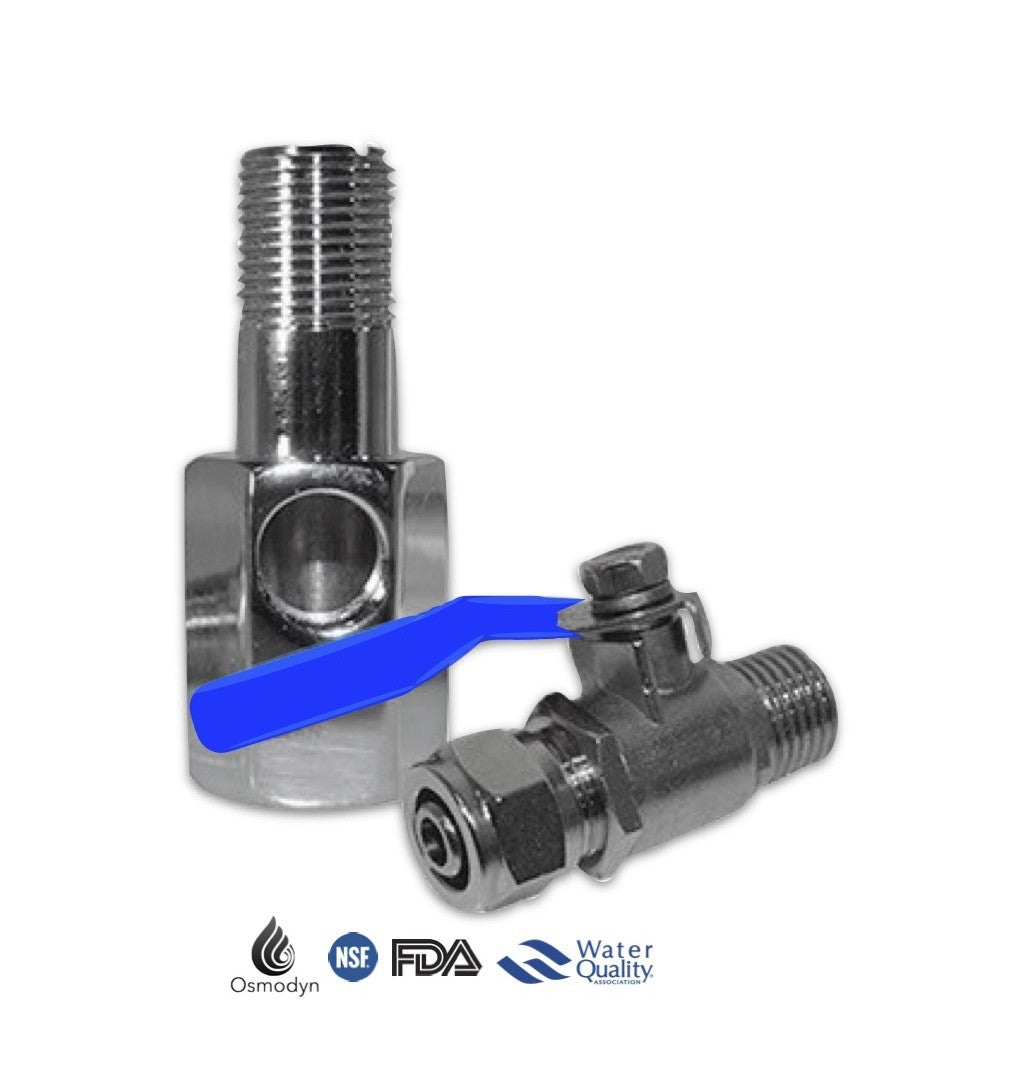

Choice of 1/4" or 3/8" tubing outlet

Selection aid for your Osmodyn reverse osmosis unit:

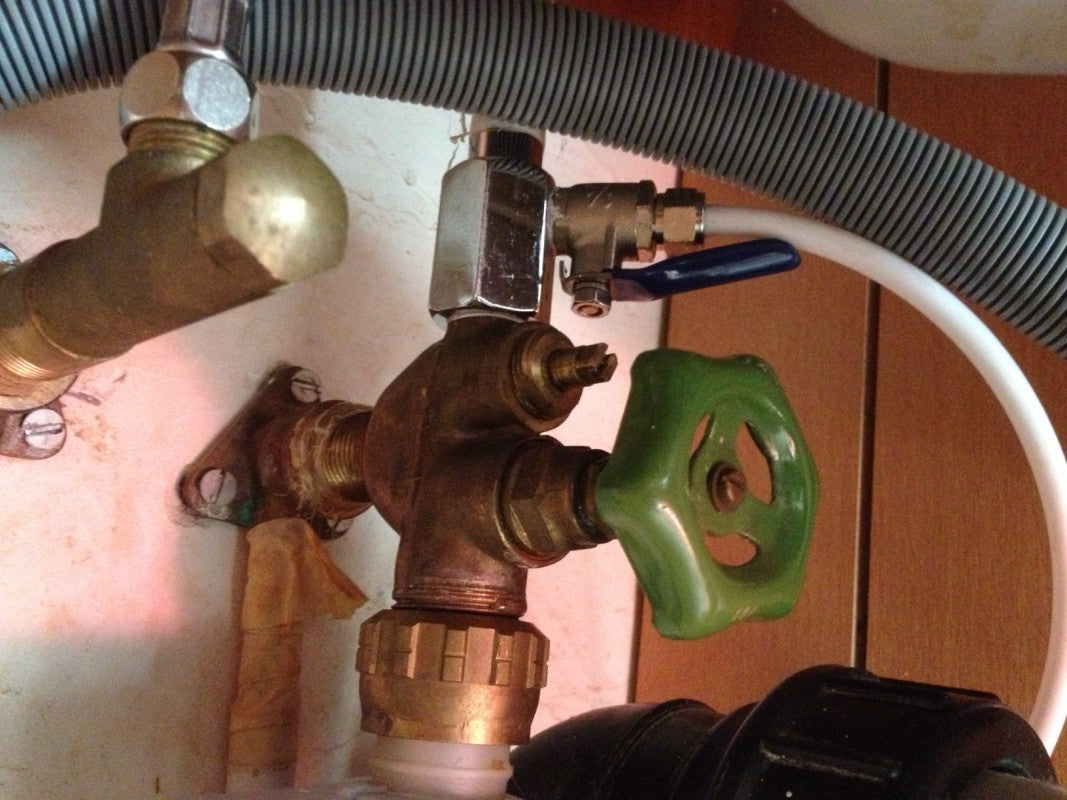

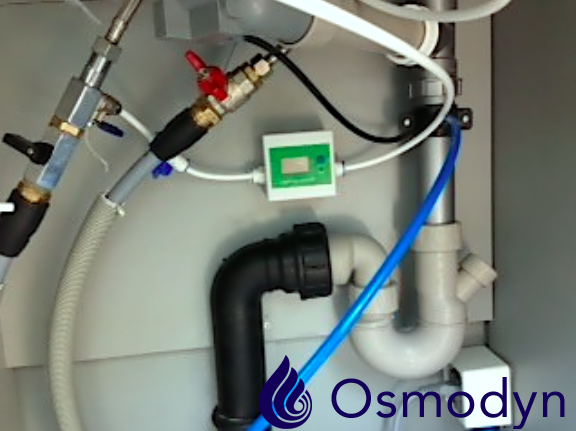

This connector for your osmosis unit is installed under the sink between the copper cold water inlet and the flexible hose of your kitchen faucet) without drilling. Very useful in a rented or company apartment.

This by-pass allows maintenance to be carried out without interrupting normal water use.

fig1 fig2

Installation:

• Turn off watersupply
• Drainthe circuit by opening the tap.
• Unscrew cold water hose
• Add sealing tape (Teflon) around all brass threads to ensure proper assembly and sealing.
• Tighten both connections, making sure that the hole in the tee which will receive the metal shut-off valve is accessible to connect your osmosis plant's tube.

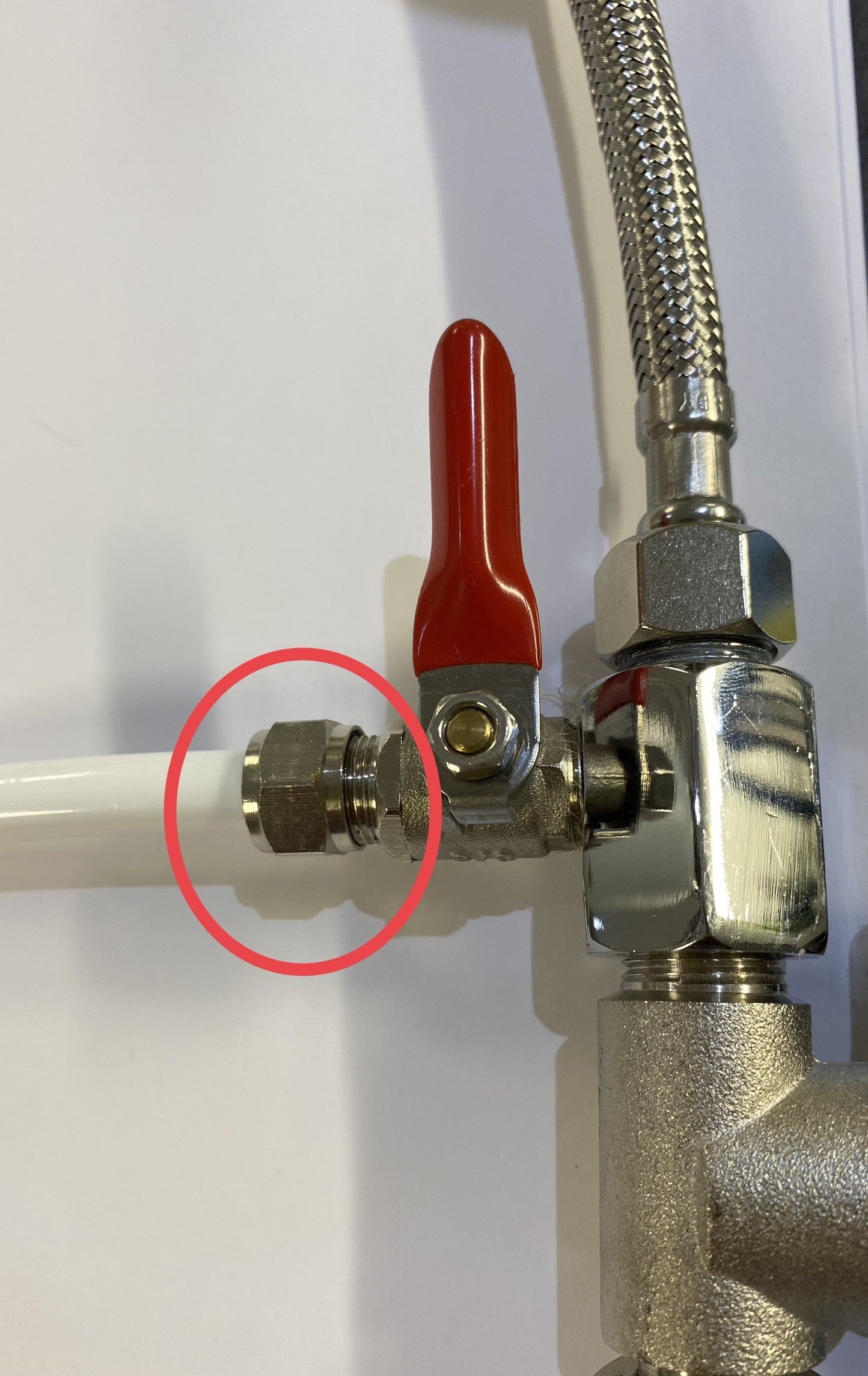

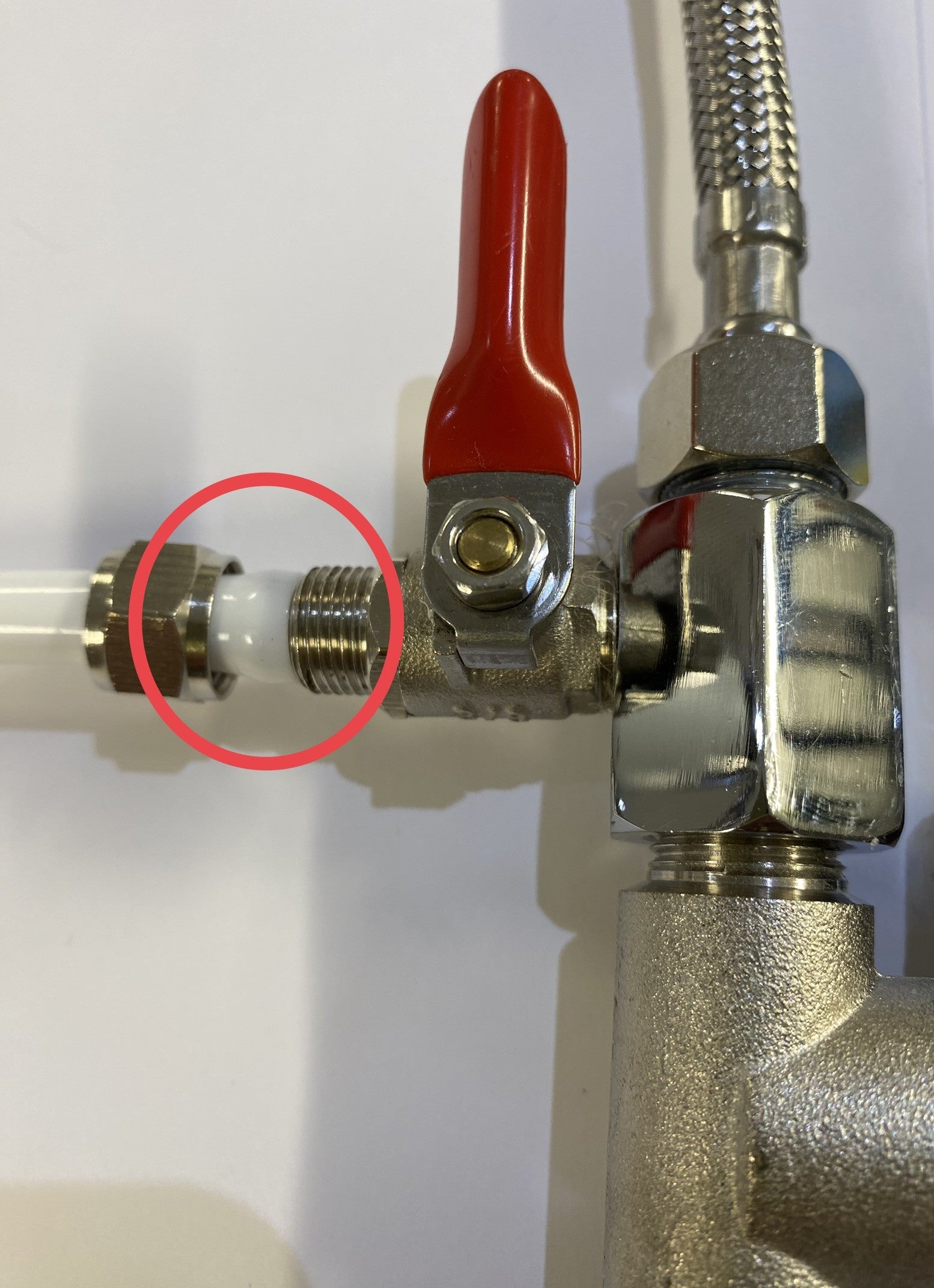

• Connect your flexible tube (WATER INLET to your reverse osmosis unit) by passing over the lug (fig 1), then screw on the nut (fig 2).
• Once you've checked that the connection is watertight, you can open the water supply and metal valve.
• Purge the air from your osmosis unit by opening the blue purge valve on the blue tube, then close it again (perpendicular to the tube).
