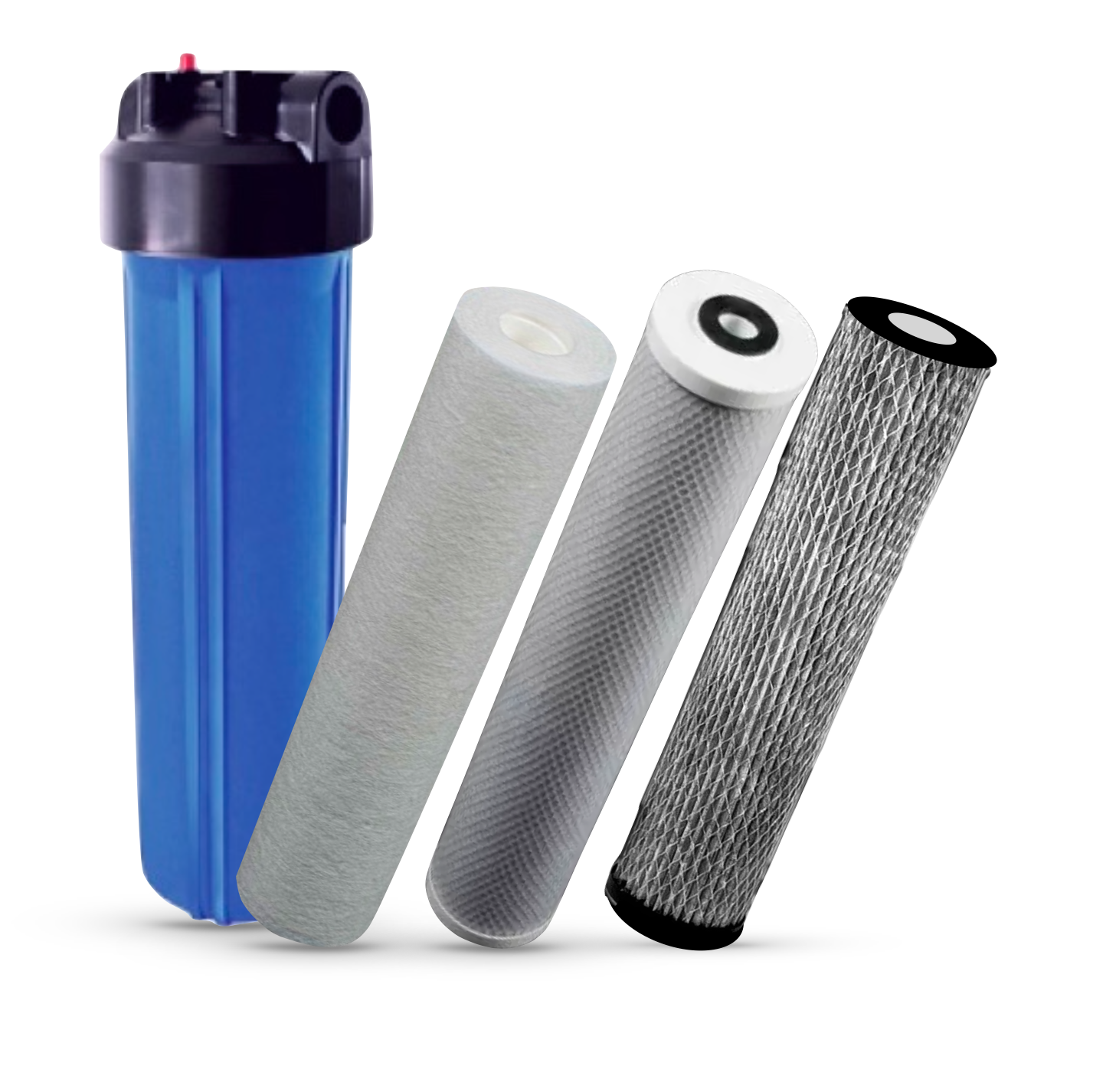

BIG BLUE 20" - High-performance filter housings & filter cartridges

Product Description

A professional high-flow pre-filtration and purification solution designed to protect your system, improve water quality, and ensure safe water for domestic or industrial use.

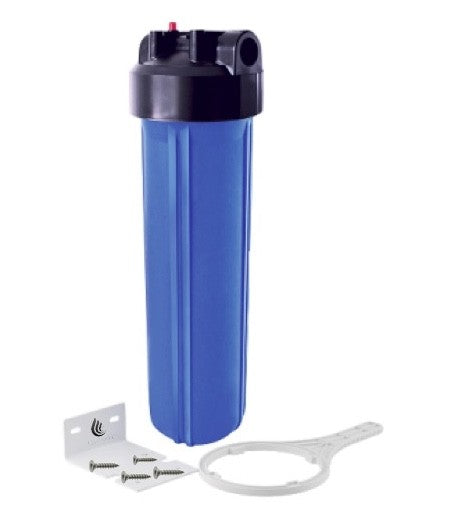

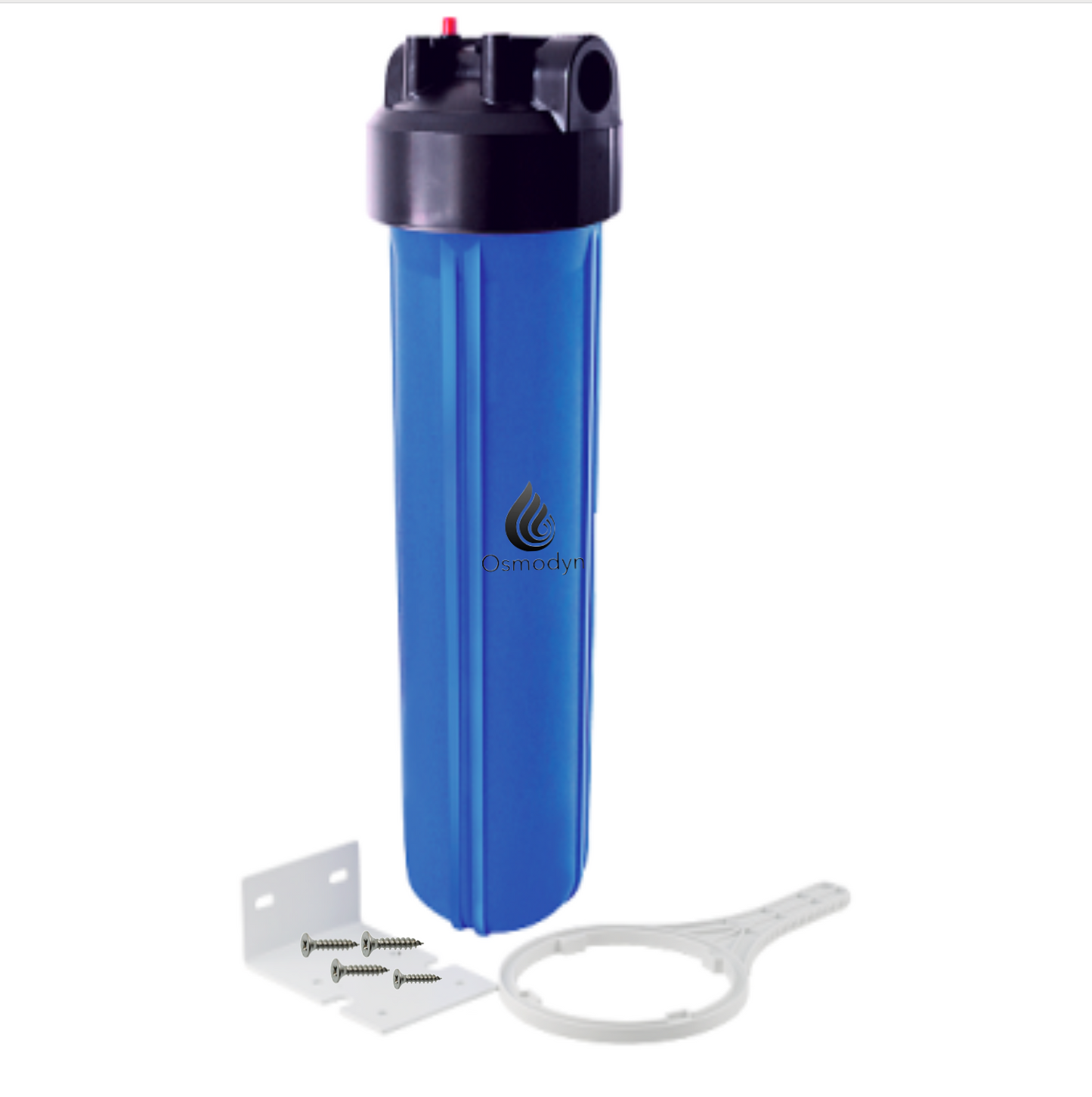

OPAQUE POLYPROPYLENE BOWL - HFPP HEAD - STANDARD

Flow rate up to 9 m³/h – Max. pressure 6.9 bar – Max. temperature 40 °C
, Ø 184 mm – H 595 mm

Connection: 1-inch F - 1-inchstandardBSPthread without metal insert

O-ring for the housing made of NBR nitrile rubber, 70 Shore.

SEDIMENT FILTERS (PP)

L 508 mm – Outer diameter 115 mm – Inner diameter 27 mm – Lifespan: approx. 1 year.

50 µ – Part No. Sediment 50 μ BB 20X4.5
Filters out sand, sludge, and rust.

5 µ – Ref. Sediment 20 μ BB 20X4.5
Fine filtration before carbon or Disruptor®.

CHARCOAL BLOCK 10 µ – Ref. Charcoal Block BB 20

Removes chlorine, odors, tastes, and VOCs.
Filters out pesticides, insecticides, and herbicides.
L 508 mm – Ø 110 mm – Flow rate 1,600 L/h
Replacement: 90,000 L max or 1 year.

DISRUPTOR® BACTERIA / VIRUSES – Part No. AD20-4.5

Electro-adsorptive Technology Removes viruses (0.05 µ), bacteria (0.5 µ), cysts, endotoxins, and drug residues.

Active surface area: 55,600 m²
Activated carbon core
Capacity: approx. 1,000 m³ (municipal water)

NSF/ANSI 42 & 61 Certified – UPC – USP Class VI.

Ideal modular system for municipal water, rainwater, or well water, with UV protection or reverse osmosis
