Filter Max self-cleaning sediment sieve 80 μ

Product description

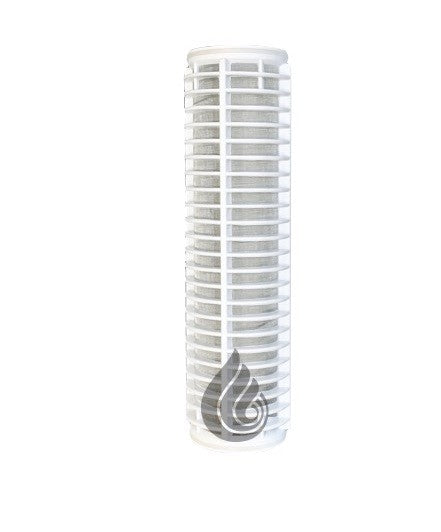

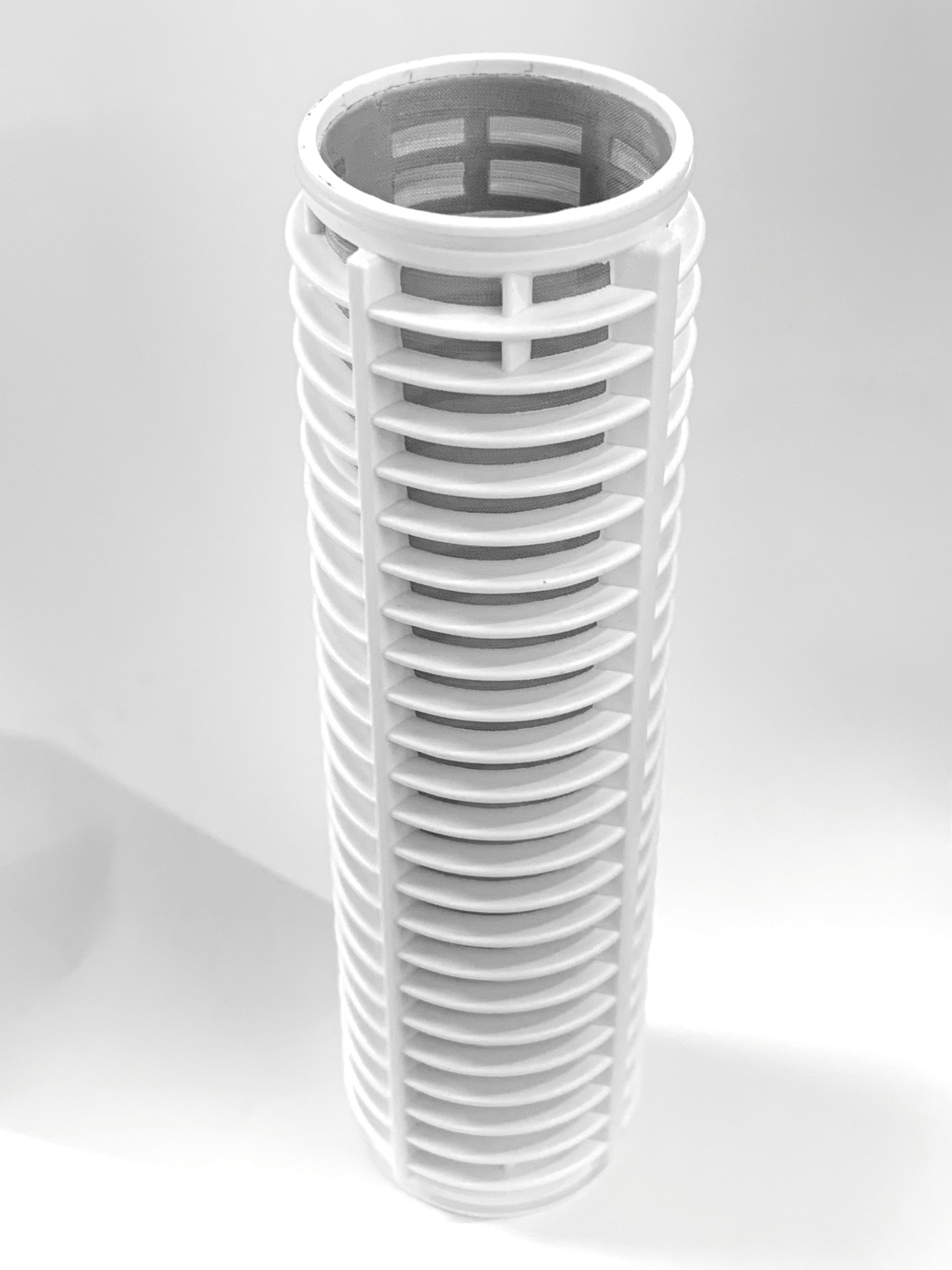

Replacement filter - Self-cleaning (Ref TamL-Fmax).

Principles :
Replacement element for self-cleaning sediment filter Restores original particle retention capacity (sand, sludge, rust) and flow rate.
Designed for cold municipal water upstream of the plant or fine treatment ( ultra-filtration osmosis, boiler...).

Benefits :
- Rapid performance refurbishment without changing the filter body.
- Highly durable stainless steel screen, low pressure drop.
- Purge rinsing (self-cleaning function).
- Electricity-free , no chemical consumables.
- Simple preventive maintenance, prolongs the life of downstream equipment.

Compatibility :

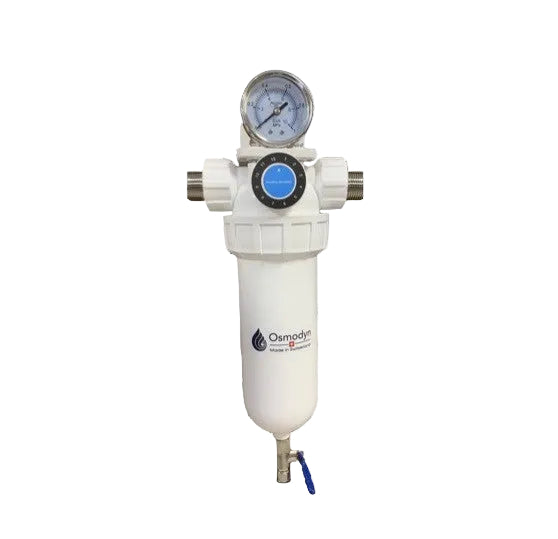

- Self-cleaning filter body Filtermax
- Existing fittings unchanged; domestic and small commercial use.

Technical data :
- Typical retention threshold > 100 µm (depending on version).
- Sanitary water-compatible materials (stainless steel sieve, suitable gaskets).
- Resistant to usual domestic pressures.

Installation & maintenance :

1. Close isolation/by-pass valves.
2. Depressurize, unscrew tank and remove old strainer.
3. Clean tank, check/renew O-ring (food-grade silicone grease).
4. Insert new element, screw back on, bleed air and rinse for 1 min.
   Rinse filter as soon as pressure rises/falls; replace if mesh is damaged or clogging persists.

Technical specifications

Dimensions and weight :

• Contents : - 1 Self-cleaning filter screen
• Length: 9.5 inches
• Diameter: 2.5 inches
• Weight: 0.61 kg
