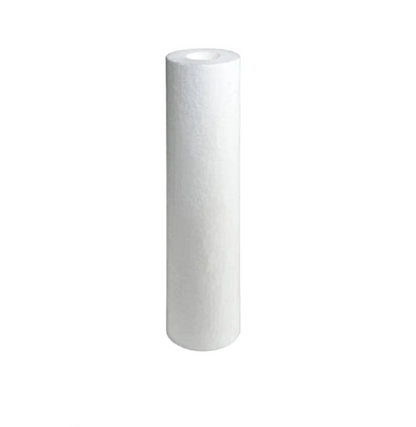

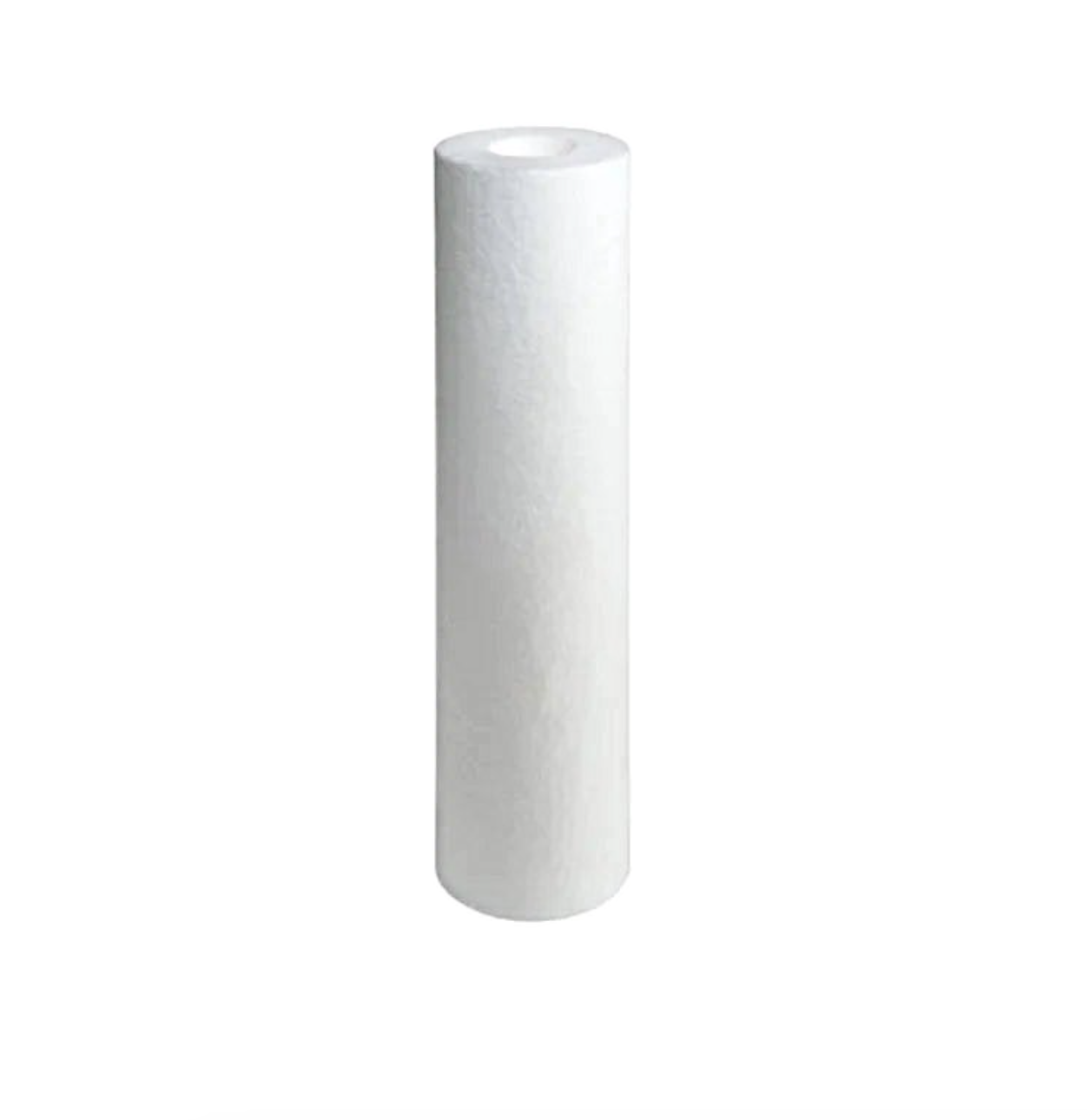

Sediment filter 9 3/4, 20 microns

Product description:

The 9 3/4 - 20 micron sediment filter (ref. CSC10-2) is an expanded polypropylene pre-filtration cartridge designed to effectively remove solid impurities from water. It can be installed after a coiled sediment filter and is an essential step in protecting water treatment plants, whether for domestic or industrial use.

Thanks to its multi-layer structure, it offers high sediment retention capacity while guaranteeing low head loss.

Filtration functionality:

• Retention of particles larger than 20 microns
• Removal of sand, rust, sludge, algae and suspended impurities
• Protection of downstream filters and equipment (osmosis units, carbon cartridges, membranes)
• Suitable for all types of water: mains water, rainwater, well water

Technical specifications :

• Reference: CSC10-2
• Type: Expanded polypropylene sediment cartridge
• Filtration fineness: 20 microns
• Format: 9 3/4 inches
• Diameter: 64 mm
• Length: 250 mm
• Maximum flow rate: 2,000 L/h
• Maximum operating pressure: 6 bar
• Maximum temperature: 65°C / 149°F
• Material: 100% pure polypropylene, recyclable

Benefits :

• Heat-welded multilayer structure, with no additives or material release
• Excellent chemical resistance
• Low pressure drop
• 100% recyclable cartridge
• Standard installation in any 9 3/4" filter holder

Maintenance and replacement :

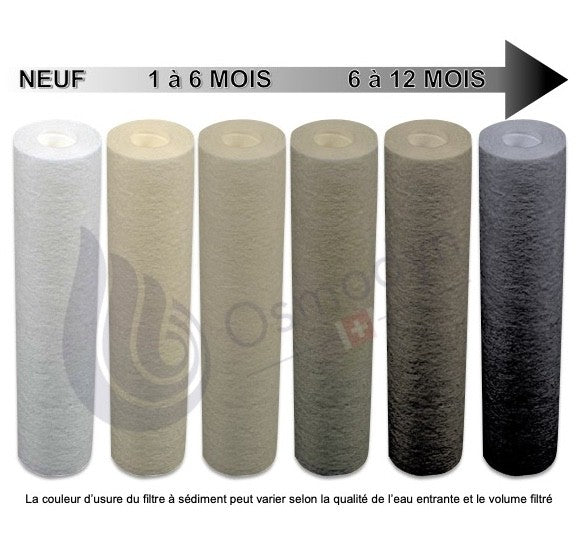

We recommend replacing the cartridge as soon as it becomes visibly saturated (brown discoloration), to preserve system efficiency and prevent clogging of subsequent filter stages.
