Elixir-Odemer RO Renewal Kit

Elixir-Odemer renewal kit:

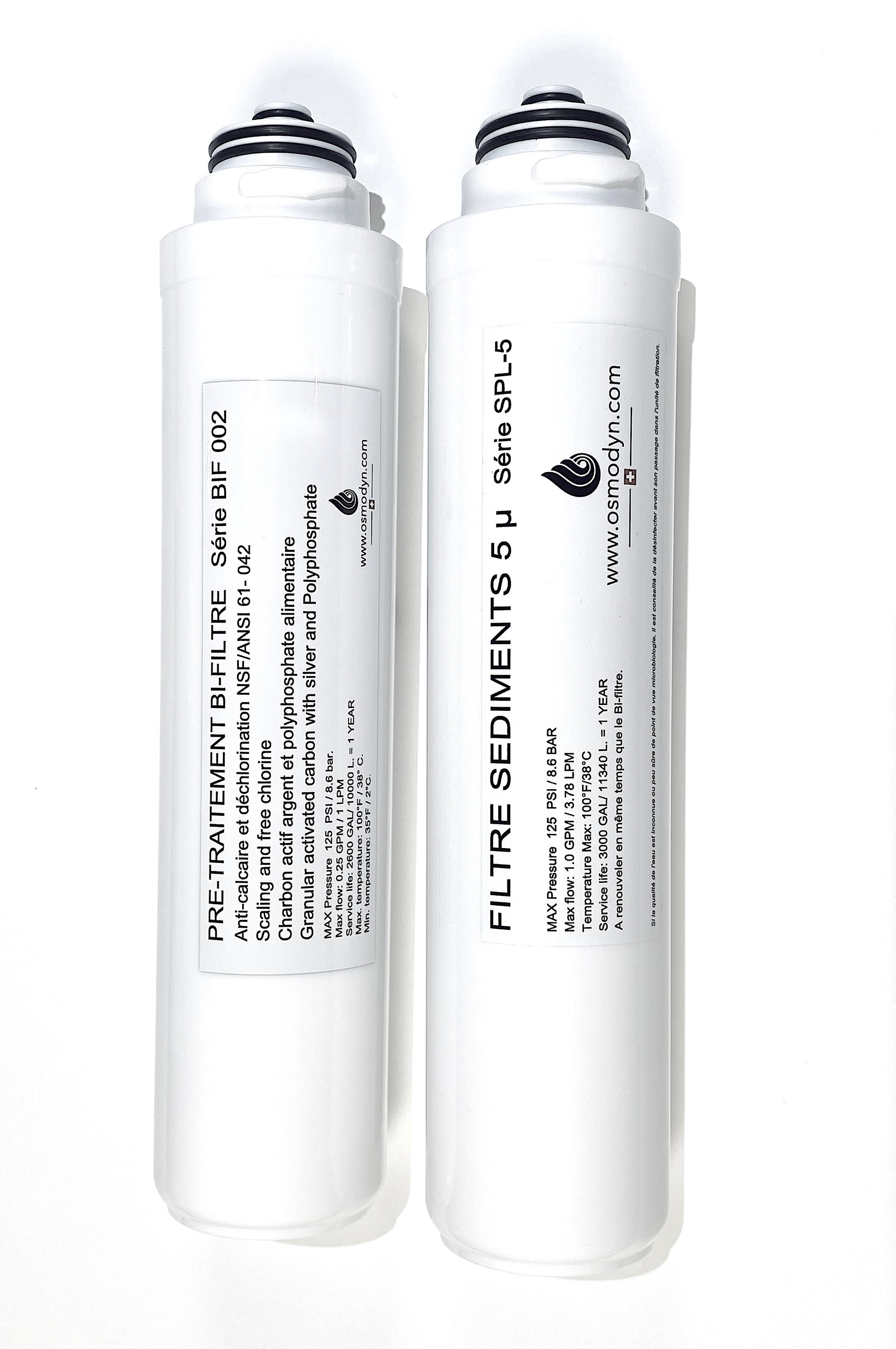

ANNUAL RENEWAL (2 pre-filters)

- 1 x SEDIMENT cartridge (Ref SPL-5 )

Dimensions : L 9.5" × Ø 2.5". 5 µm polyphosphate filter. Inlet pressure 0.5-4 bar. Autonomy 3,000 gal / 11,340 L / 1 year. Retains suspended solids ≥ 5 µm.

- 1 x BI-FILTRE cartridge (Ref BIF002 ) bayonet-type

Dimensions : L 9.5" × Ø 2.5". Activated carbon, silver, food-grade polyphosphate. Pmax 125 PSI / 8.6 bar. Max flow 0.25 GPM / 1 LPM. Autonomy 2,600 gal / 10,000 L / 1 year. Treatment: anti-scale and chlorine in cold water. Tip: rinse bi-filter before restarting to prevent membrane clogging. T° max 100 °F / 38 °C - T° min 35 °F / 2 °C.

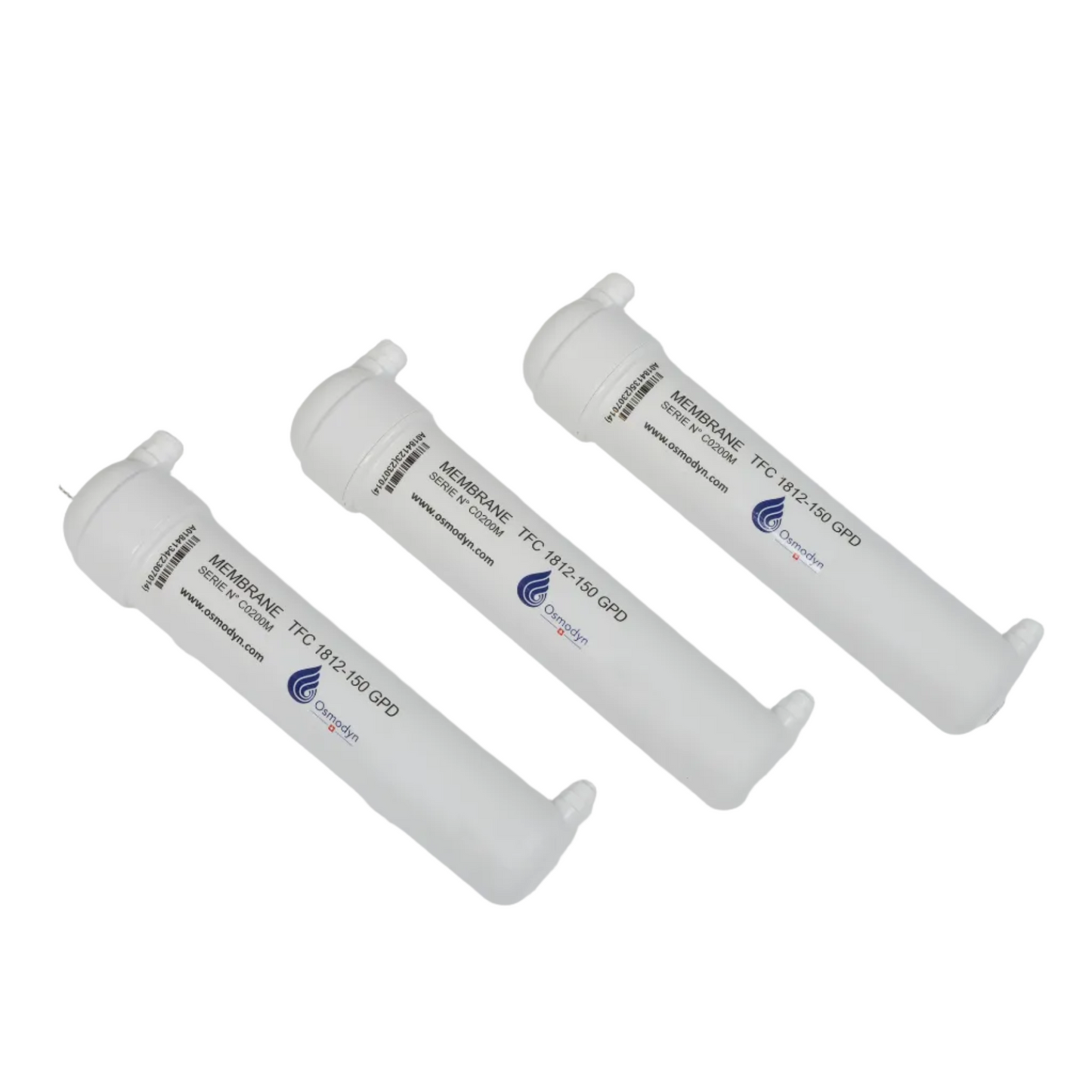

TRIENNIAL RENEWAL (3 membranes RO)

- 3 × Encapsulated membranes RO 1812 -1 5 0 GPD (Ref C0200M) (3/8" inlet, 1/4" outlets)

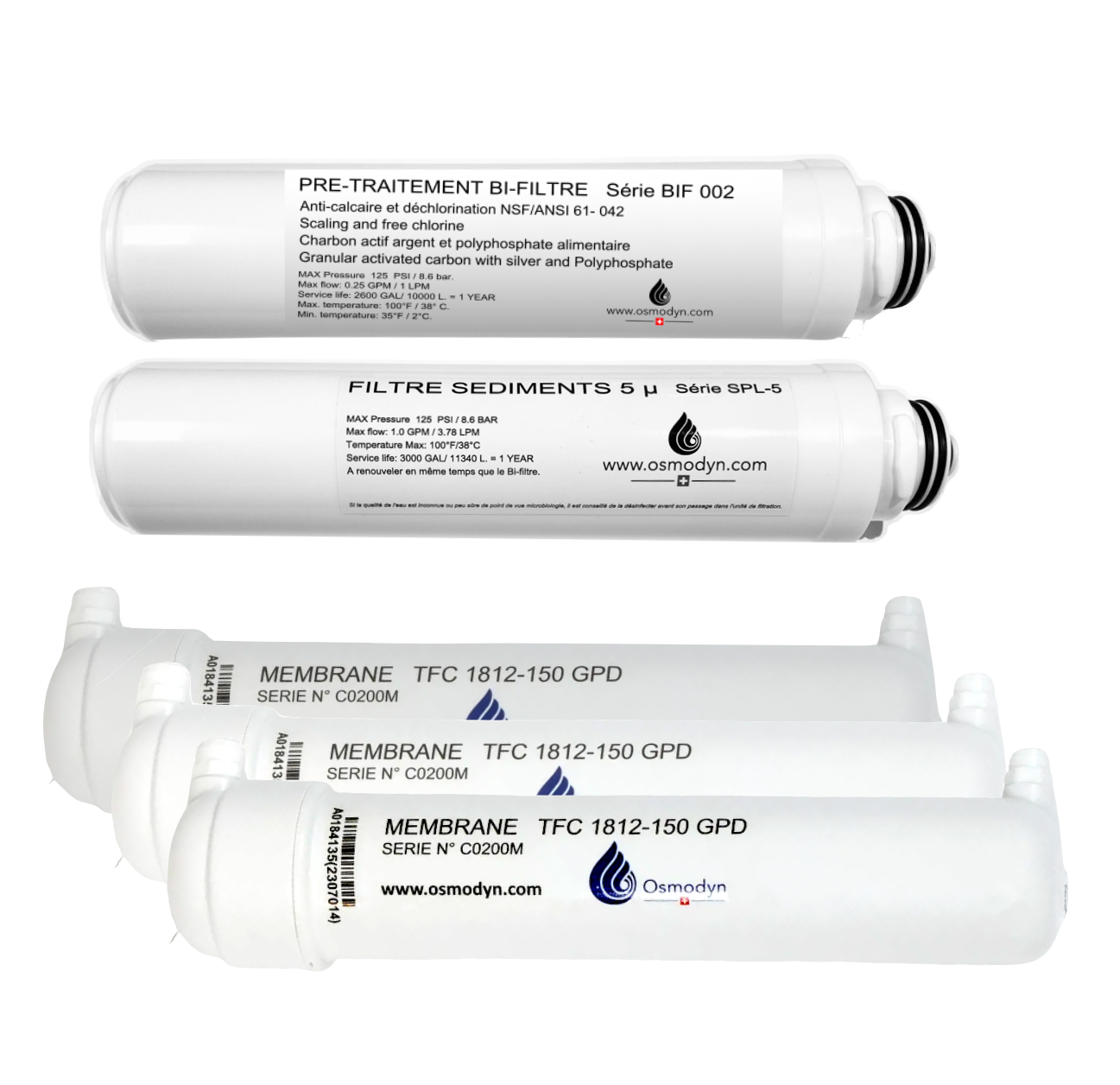

TRIENNIAL INTEGRAL RENEWAL (5 filters)

- 1 x SEDIMENT cartridge (Ref SPL-5)

- 1 x BI-FILTRE cartridge (Ref BIF002)

- 3 × Encapsulated membranes RO 1812 -150 GPD (Ref C0200M) (3/8" inlet, 1/4" outlets) . Bi-filter and mineralizing post-filter must be replaced at the same time.

Faster, safer commissioning (encapsulation, no handling), barcode for traceability. Life expectancy linked to water quality, can exceed 3 years.

Performance: 100% removal of viruses and > 99% removal of chemicals. Cross-flow filtration (reject = concentrate; permeate = purified water). Each encapsulated membrane is numbered and sealed.

Specifications:

RO membrane : Type TFC, (not TAC). spiral wound; composite polyamide polymer; polypropylene spacer. Permeate flow 150 GPD (568 L/d); salt rejection 97.5%; pH 6.5-7.

Feeding limits (general use) :

pH 3-10; T° 45°C; pressure drop 10 psi; flow 6.5 L/min (2 gpm ); operating P. 8.6 bar (125 psi); Cl₂ < 0.1 ppm; turbidity 1 NTU.

Data:

Applied pressure 3.5 bar (limit 8.6); NaCl 200 ppm; Operating T° 25 °C (limit 45 °C); Permeate recovery 15%; pH 6.5/7.0; L 335 mm; Ø 73.6 mm; Weight 1.54 kg (empty).

Minimum permeate flow rate may be -15% of nominal.
