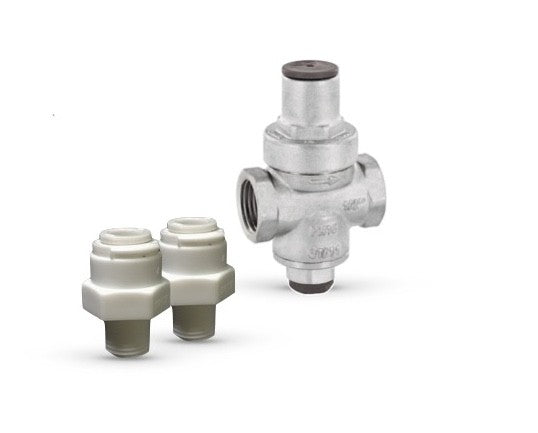

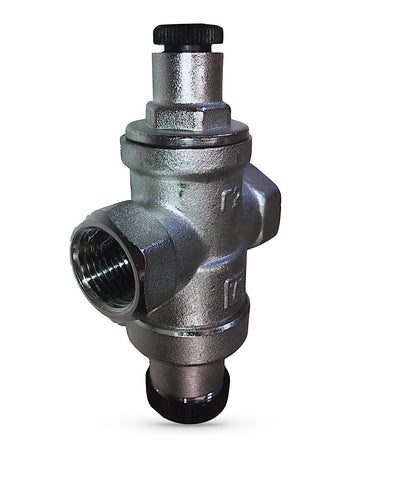

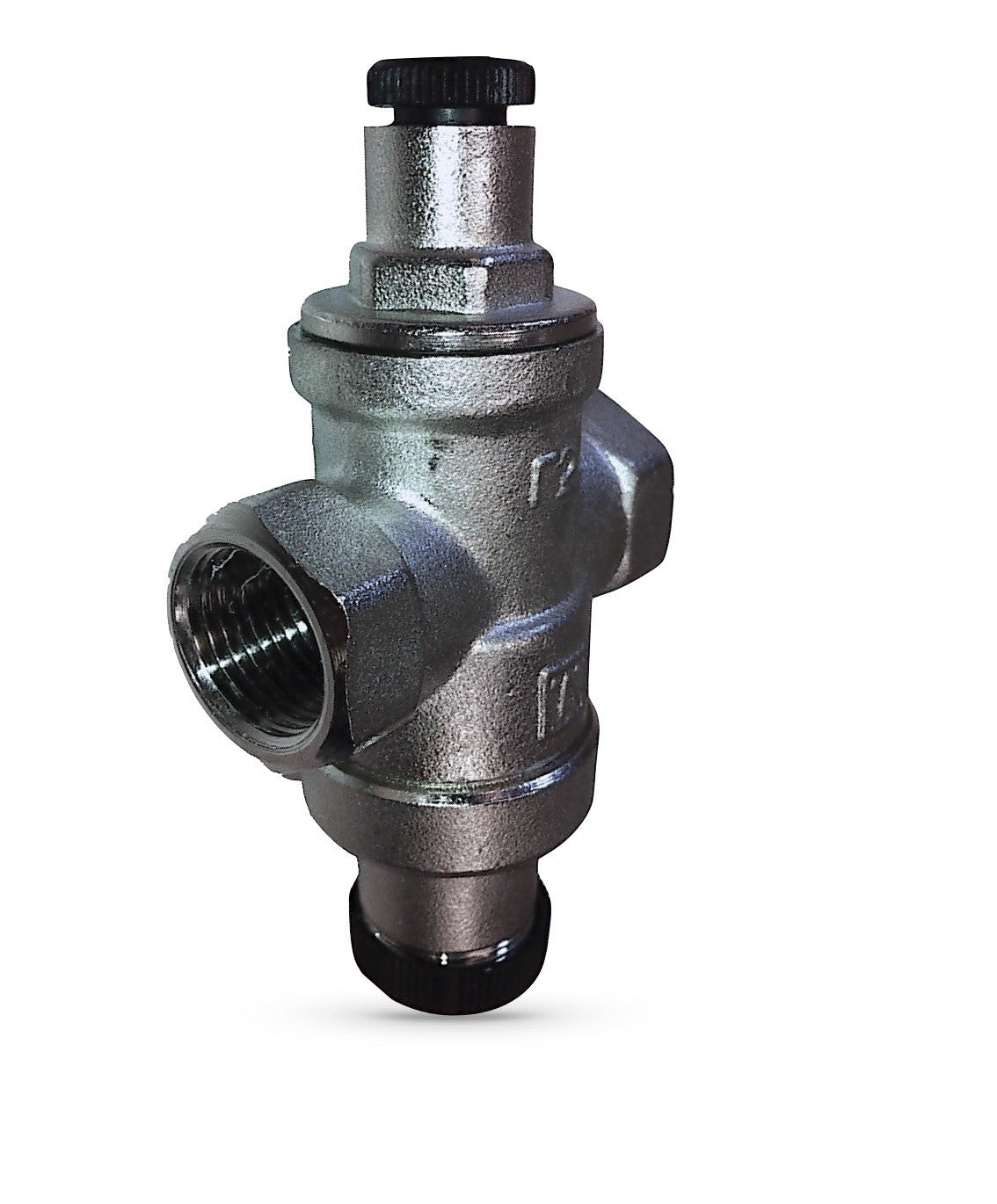

Pressure reducing valve

Product description

This range of pressure reducing valves is suitable for small installations, such as domestic systems. Installation of the reducer in a domestic water system reduces and stabilizes the water supply to the network.

Its installation is recommended for :

- Prevent excessive network pressure from damaging hydraulic equipment.

- Maintain constant operating pressure with variable inlet pressure.

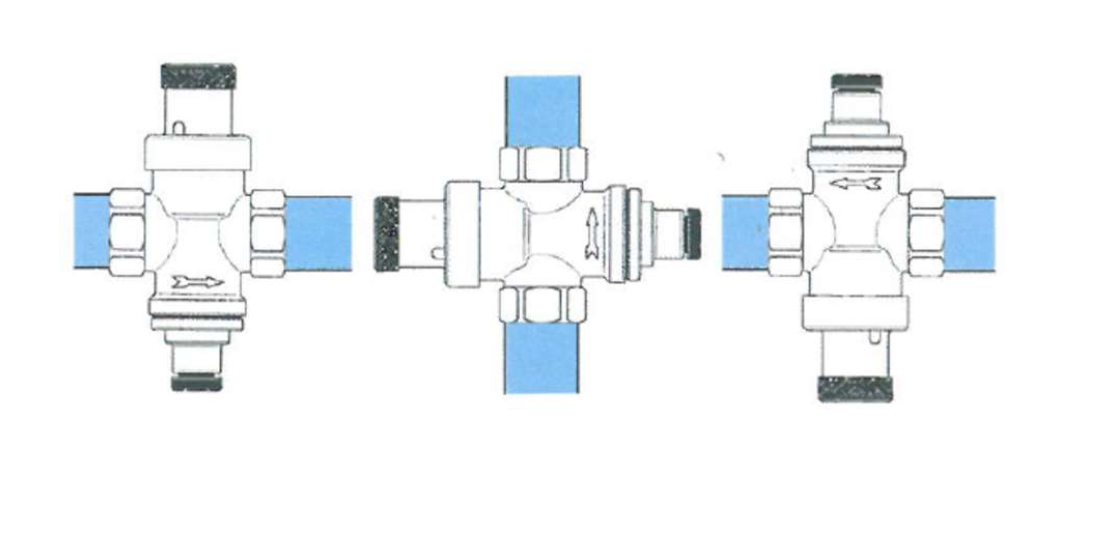

The pressure reducer can be installed in any position, but the direction of flow must always be respected. Installation of a by-pass is not recommended.

It is recommended to install a filter upstream of the pressure regulator to eliminate impurities in the water that could accumulate in the reducer body and cause malfunction.

The pressure regulator is suitable for air-conditioning systems, sanitary installations for water supply, irrigation and distribution systems, compressed air (without misting oils, fire hoses) and sanitary installations for water supply in buildings.

Technical specifications

Hot and cold water compatible

UNE-EN 12165-12164

• Connections: F 3/8
• Max. pressure: 16 bar
• Adjustment pressure: 1 to 16 bar
• Pre-adjusted pressure: 3 bar
• Operating temperature: 0°C (frost-free) to 90°C
• Body and piston: Brass
• Spring: AISI 304
• Seals : EPDM
• Finish: Nickel plated EN12540
