Osmodyn

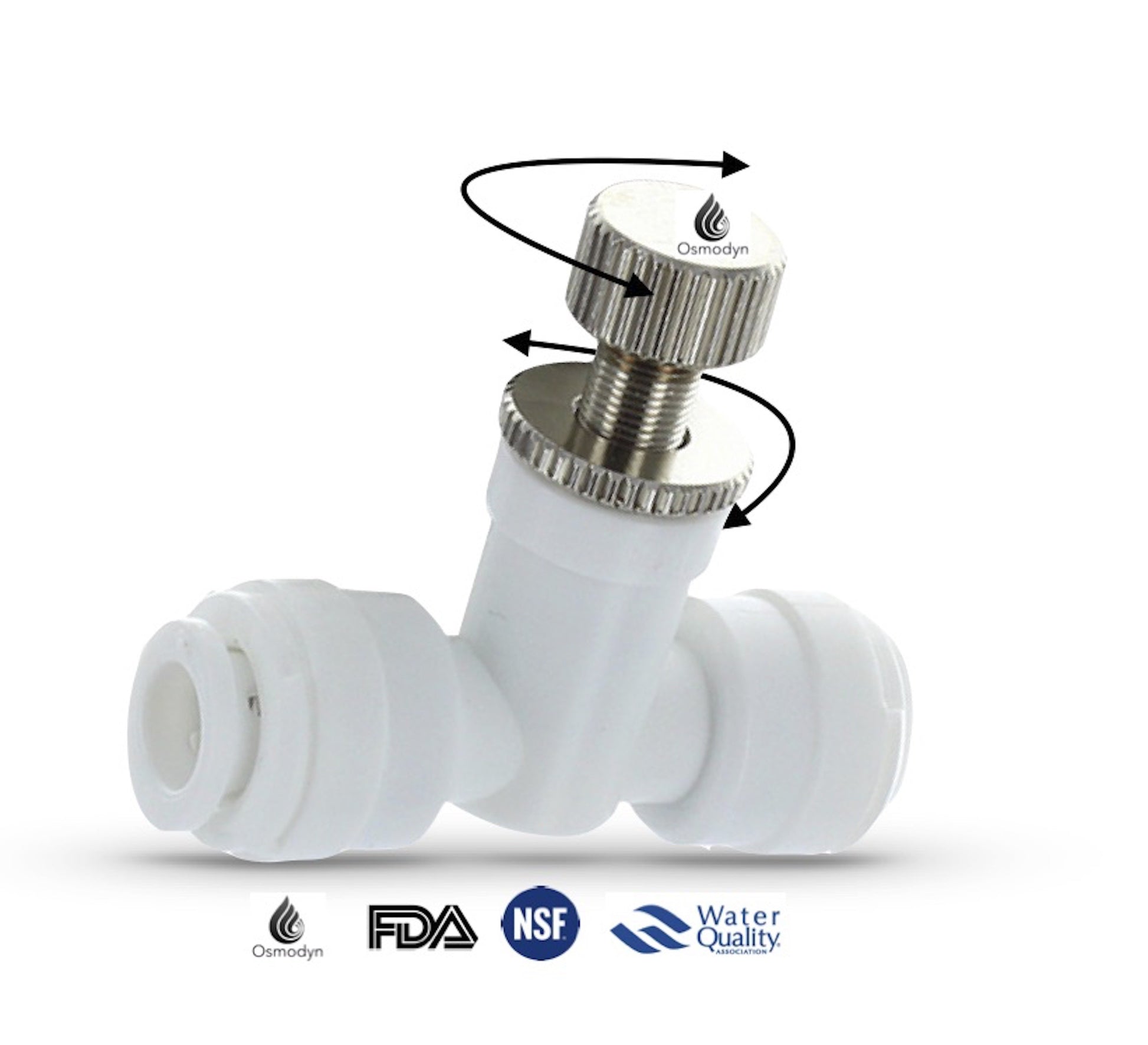

Discharge regulating screw - TDS regulation
Discharge regulating screw - TDS regulation
Regular price
CHF 9.00
Regular price
Sale price
CHF 9.00
Taxes excluded.
Quantity
Couldn't load pickup availability
- 1/4" tube connection
- Operating temperature and pressure:
| Pressure | 10 bar | 4 bar |
| Temperature | 1°C(35°F) | 65°C(150°F) |
⚠️ Do not change factory setting
Rejection must be visually +/- equal to the flow rate of the purified water tap and preferably slightly higher
- Compliance:
51 61
ISO 9001 ISO 14001
1- Release the stroke of the discharge screw by loosening the large metal washer (if you find it difficult to loosen, lower the internal pressure of your osmosis plant by opening the drain valve and tap after disconnecting the pump).
2-The discharge screw acts like a needle: screwing it in lowers the needle, which reduces the flow of water, and unscrewing it opens up the flow of water.
3-To ensure long membrane life, the discharge must ALWAYS be more or less equal to the flow rate of the purified water tap - a visual check is all that's needed.
