Triple under-sink filter Logico-Pro

Product description

Ultra-Filtration 12"Pack - Under-sink - Wall bracket

Why this pack?
- Savings: pays for itself in just a few months (depending on consumption).
- Environmentally-friendly: no electricity required. - 2-year warranty (excluding consumables).
- ACS (Attestation de Conformité Sanitaire).

Improves the quality, odour and taste of mains water and protects downstream professional devices (chiller...gasification).

Overall filtration performance

• Flow rate up to 8 L/min .
• Chlorine reduction > 90% (water-dependent).
• Retains: sediments > 5 µm , tastes/odors, VOC/THM , traces of pesticides, heavy metals, some PFAS
• Does not retain nitrates, as it is not an osmosis unit.

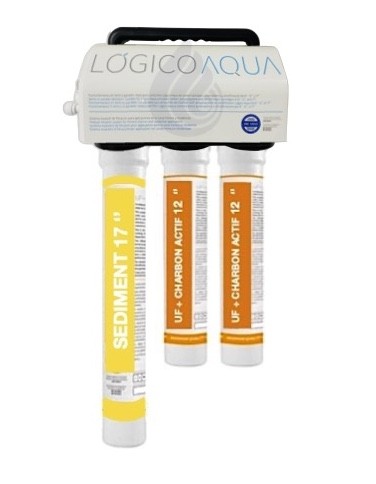

Technology

1 x 17" cartridge

• 1 x 17" Bayonet cartridge 50 µm sediment. Ref KIT1LOGICSED17: turbidity, sand, particles.
• Extruded polypropylene
• Renewal: Quick-change by rotation -hygienic- easy
• Capacity* 35 000 L ; 1-8 bar ; 4-38 °C ; max flow 6,5 L/min

2 x 12" cartridges

• 2 x Bayonet cartridges hygienic quick-change (rotation).
• 2 high-performance media: NSF coco activated carbon (continuous adsorption) + 5 µm sediment filter .
• Replacement: 6-12 months or 12,000 L .

Technical specifications
Max. pressure: 8.6 bar . Temperature : 2-60 °C .
Dimensions : Ø 100 mm ; L 380 mm (including wall bracket).
Connections: quick-fit 3/8" water inlet/outlet.

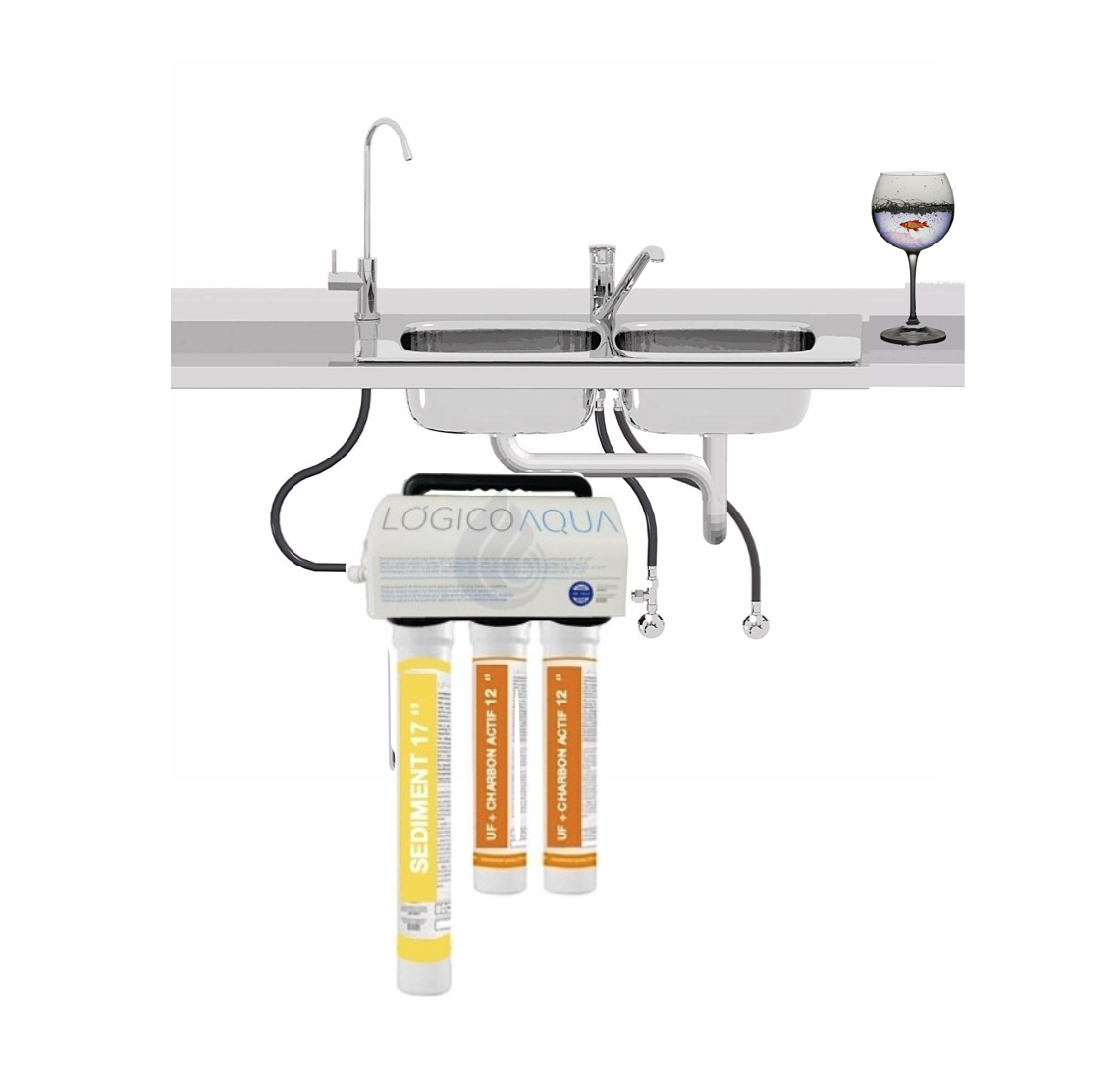

Installation & advice
Choose a location underneath the floor plan; check filter height for renewal.
Rinse 2 min before start-up.

Notes
Use on mains water. For rainwater/drilling, provide additional treatment upstream and an osmosis unit downstream to eliminate a broad spectrum of contaminants.

Dimensions and weights :

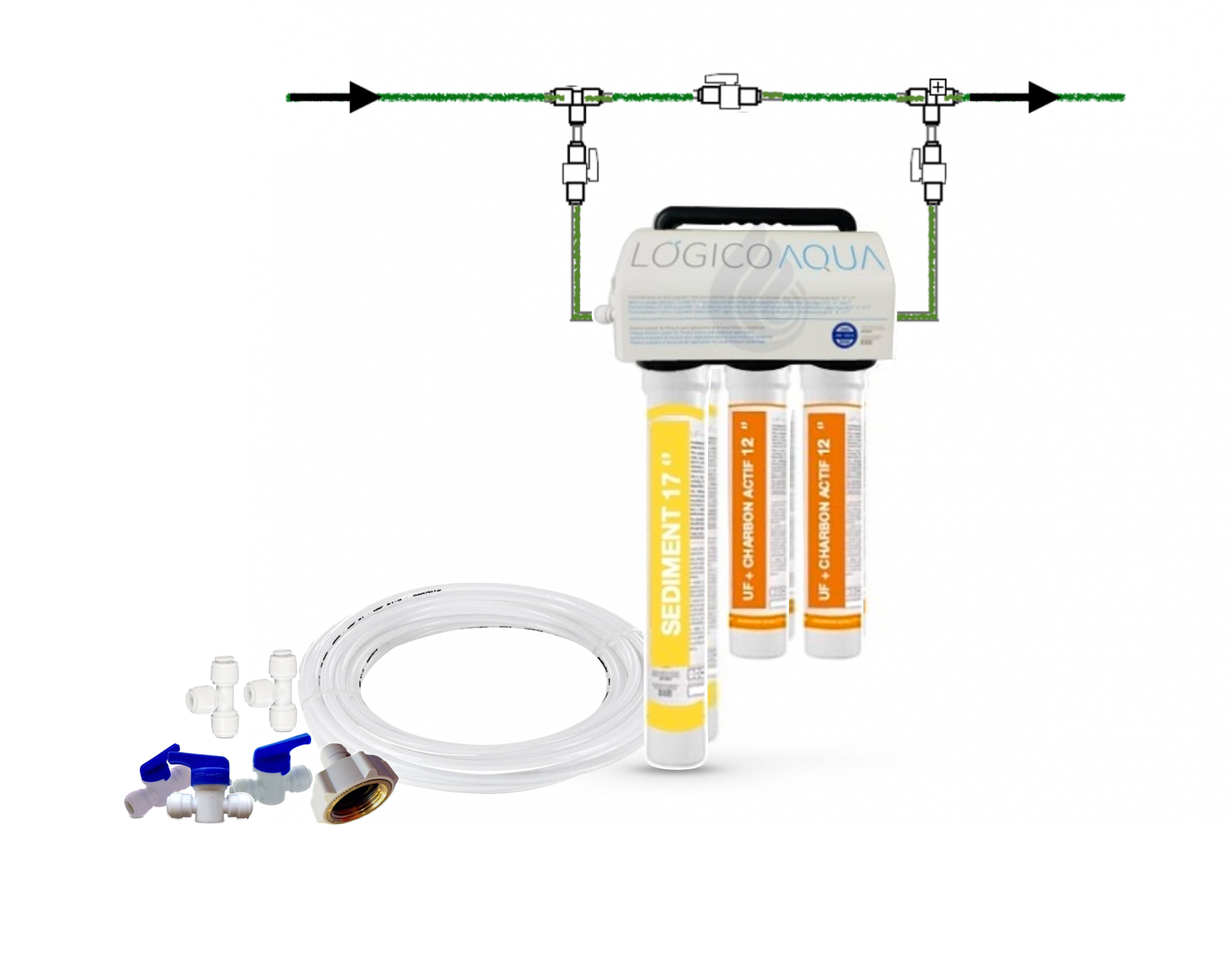

• 3/8" by-pass supplied: isolates the unit during replacement.
• Certifications: NSF/ANSI 42 - Manufacture: EU
• Height 67 cm
• Depth 18 cm
• Total length: 380 mm (including wall bracket)
• Weight: 4.35 kg
